Dome Lights

Diffuselite Dome Standard and MetaBright™ Series featuring high and uniformity (+/- 5%). Diffuse Dome Lights are ideal for inspection of reflective, specular, rough, or topographic surfaces. Optical grade reflector coating returns 99.9% of light for optimum diffuse output. These Dome Lights illuminate the entire surface of the curved glossy workpiece with high uniformity, ideal for Machine Vision.

Diffuse Dome Lights are engineered to minimize glare and prevent unwanted shadows for optimal lighting scenario, as often required for Machine Vision. Diffuse Dome illumination yields non-directional illumination for applications requiring lighting from all angles across the viewing hemisphere. These Diffused Dome Lights provides high output diffuse uniform lighting.

Our Diffuse Tube Lights share the benefits of diffuse dome lighting, but are structured to address the needs of lighting specular surfaced objects with high aspect ratios (wide of thin) profiles. Diffuse dome/tube illumination yields non-directional illumination for Machine Vision applications requiring from all angles across the viewing hemisphere. Our Diffused Dome Lights can be configured for wavelength and other specifications.
DOME LIGHTS (INDIRECT LIGHTING)
These Dome Lights for Machine Vision illuminate the entire surface of the curved glossy workpiece with high uniformity.

HPD2 Series;

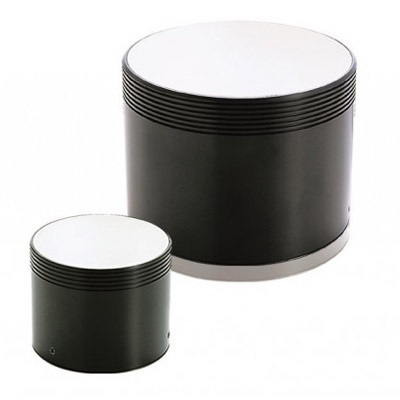

LDM2 Series;
PDM Series;
MB-DL Series.

FLATE DOME LIGHTS (INDIRECT LIGHTING)
These Flat Dome Lights for Machine Vision provide uniformly diffused light using original lighting technology. The effect of coaxial and dome lighting is achieved with one unit.

LFX2 Series.

DIFFUSE TUBE LIGHTS (INDIRECT LIGHTING)
Our diffuse Tube Lights for Machine Vision share the benefits of diffuse dome lighting, but are structured to address the needs of lighting specular surfaced objects with high aspect ratios (wide of thin) profiles.

HP-CDT Series;
MB-CDT Series;
MB-DT Series.

For more information and advice please contact us through an inquiry.
APPLICATIONS

Machine Vision;
Metal and chromed bearing surface inspection;
CD / DVD assembly inspection;
Package inspection of glossy plastics and finishes;
Inspection of metal stampings and parts with eletrical contacts;
Automotive applications;
Medical device packaging and tray packs;
Pharmaceuticals blister form fill and trim;
Cosmetics and makeup packaging equipment and lines;
Diffused Tube Lights are meant for inspecting elongated parts.

FEATURES

Ideal for Machine Vision applications;
Patent-pending LED thermal management for consistent performance;
High intensity and uniform, non-directional illumination across entire lighting hemisphere for area scan;
Ideal for highly reflective surfaces and textured or topographic objects;
Provides cloudy day illumination, minimizing shadows and glare;
Enclosed workspace blocks interference of ambient light;
Optical grade reflector coating reflects 99.9% of light for optimum diffused output;
Strobe & dimming options;
Connectorized and convenient 24VDC power supply with integrated driver onboard;
Mounting: Comes with mounting studs.

Read less more ...

MB-DL206-R-24

MetaBright 1.86" I.D. and 4" O.D. Diffused Dome Light Red, 24VDC

Filters

Dome Lights

MB-DL206-R-24

MB-DL206-W-24

LDM2-50BL2

LDM2-50GR2

HPD2-150RD-IU

HPD2-150SW-IU

HP-CDT106B-24

HP-CDT106G-24

HP-CDT106R-24

HP-CDT106W-24

MB-DT406-W-24-LO

HPD2-100IR860

LDM2-50RD

HPD2-75BL

HPD2-75RD

HPD2-75SW

LDM2-50RD2

LFX3-100BL

LFX3-100IR860

LFX3-100RD

LFX3-100SW
