Lighting - Line Lights
VLT offers the industry’s breakthrough performance line lights for imaging, web, and high-speed line scan applications requiring ultra-high intensity and uniformity. Our line lights are built as lean fixtures that can be easily controlled and integrated into (Machine) Vision systems.
Our standard and MetaBright™ Line Lights feature an adjustable lens, enhanced cooling options, and low current consumption. Our new computer-operated micro-flow compressed air thermal control and integrated fan cooling systems allow Metaphase Line Lights to operate cool, a thermal advantage in many Machine Vision applications.
Standard and Metabright™ Line Lights project a thin strip of concentrated LED light onto an object, suitable for inspection by Line Scan cameras (linear array), the web converting industry, Machine Vision and non-web applications. Equip with patent-pending micro-lens and high power LEDs, Line Lights produce a uniform beam output brighter than COB (Chip On Board) or halogen technology.
These Line Lights are ideally suited for imaging with a line sensor camera. The radiant power, uniformity, and length can be selected according to the Machine Vision application.
LINE LIGHTS (INDIRECT LIGHTING)
These Line Lights are ideally suited for imaging with a line sensor camera. The radiant power, uniformity, and length can be selected according to the Machine Vision application.
LNDG Series;

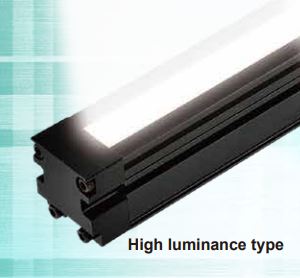

LNSD Series;
LNIS-FN Series;
LNIS Series;
LNSP-FN Series;
LNSP-UV-FN Series;
LND2 Series;
LNSP Series;
LT Series;
HLND Series;
MB-BLL Series.
LINE LIGHTS (CONVERGENT LIGHTING)
These Line Lights for Machine Vision are equipped with a cylindrical lens, which converge light into a straight line without waste.
LN Series.
UL LINE LIGHTS
Blending the advanced breakthrough technoloy of our Gen4 Line Light with the compact design of our MetaBright™ Line Light, brings the latest Line Light design for Machine Vision. Our UL Line light provides a narrow, structured beam delivers high intensity and concentrated light fort he narrow field of view of a traditional line scan camera.
The high intensity and uniformity allows the UL Line Light to be used as a front light to inspect for material defects; angled to obtain an off-axis effect to highlight surface defects or, it may be placed beneath the object for a backlight effect to inspect for holes, voids, or containments. The UL Line Light is available with a wide variety of LED colors such as white, red, green, blue, IR, UV (365nm & 395nm), and even RGB with independent color control up to 150’’ (3.81m) in length for large web and Machine Vision applications.
UL-LL Series.
METABRIGHT™ LINE LIGHT
The MetaBright™ line light for Machine Vision produces extremely high brightness and uniform line across the various apertures. Our line lights can be configured for wavelength, cooling method and working distance.
MB-LL Series.
COLLIMATED LINE LIGHT
A propriety optics to create a high power collimated line light for LONG distance Machine Vision applications. This collimated line light produces extremely high brightness and uniform line across apertures. Our line lights can be configured for wavelength, cooling method and working distances
MB-CLL Series.
For more information and advice please contact us through an inquiry.
APPLICATIONS
Machine Vision;
Backlight versions for web backlight & silhouetting applications;
Web inspection (foil, plastic film, PCBs, glass, paper, web converting, etc.);
Geometry measurements of long targets;
Direct position measurement;
Printed circuit board inspection;
Tube or bottle inspection.
FEATURES
Ideal for Machine Vision applications;
High intensity;
VLT offers the largest selection of line lights available;
High uniformity both laterally and longitudinally;
Lens options for various beam widths and working distances;
Cooling options include convection, fans, compressed air wit hand without computer air flow;
Outperform Halogen and fluorescent based illumination;
Intensity control capability;
Collimated versions for extremely long working distances;
Compact diffuse flat tube versions for high reflective materials;
Diffuse Axial Line Lights for on-axis illumination;
Adjustable lens focusing range (mm to meters);
Built-in constant current driver(s) provides consistent illumination output;
24V version require no special controllers: simply provide 24VDC.
Read less more ...
LL1804-IR-24
85" Line Light Infra-Red (850nm), 24VDC
LL1804-R-24
85" Line Light Red, 24VDC
LND2-1000BL
Line Light, Blue
LND2-1000GR
Line Light, Green
LND2-1000SW
Line Light, White
LNDG-2500SW-LA
Line Light, White
LNLP-500SW
Line Light White, 24V
LNSP2-1000SW
Line Light White, 24V
LNSP2-1000SW-NDF
Line Light White, 24V
LN-EAA-800SW
Tunneldome Light, 50mm width
LN-EBA-800SW
Tunneldome Light, 100mm width
LT-300SW
Line Light, White
LL1404-IR-24
65" Line Light Infra-Red (850nm), 24VDC
LL1404-R-24
65" Line Light Red, 24VDC
LNSD-300IR860
Line Light, IR 860nm
LNSP2-1500SW
Line Light White, 24V
LNSP2-1500SW-NDF
Line Light White, 24V
LNSP2-2000SW
Line Light White, 24V
LNSP2-2000SW-NDF
Line Light White, 24V
LNDG-600SW-LA
Line Light, White
